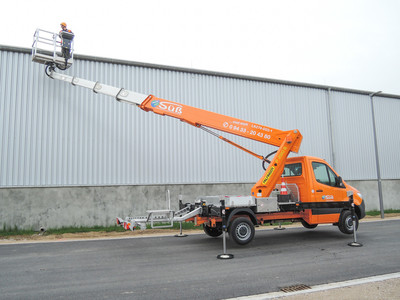

Truck mounted platform - LK276-D22
Technical datas
| Manufacturer name: | Palfinger P 280 B |
| Max. working height: | 27,60 m |
| Max. platform height: | 25,60 m |
| Max. horizontal reach: | 12,80 m* |
| Max. Lift capacity: | 230 kg |
| Platform dimensions: | 1,40 x 0,70 m |
| Machine dimensions: | 7,86 x 2,23 m |
| Transportation height: | 3 m |
| Support dimension: | 2,00 / 2,70 / 3,36 m** |
| Weight: | 3375 kg |
| Ground pressure load support max.: | 3400 daN |
| Power: | diesel |
Features
| Usage area: | outdoor use |
Special features
+ Variable support width short vehicle length
+ Ideal for the city centre
+ Automatic support levelling
+ Rotating beacons
+ 230 V - Socket in basket
* see range diagram: (load dependent)
** Supporting dimensions: (plate centre) => on vehicle width/ one side narrow / both sides wide supported
