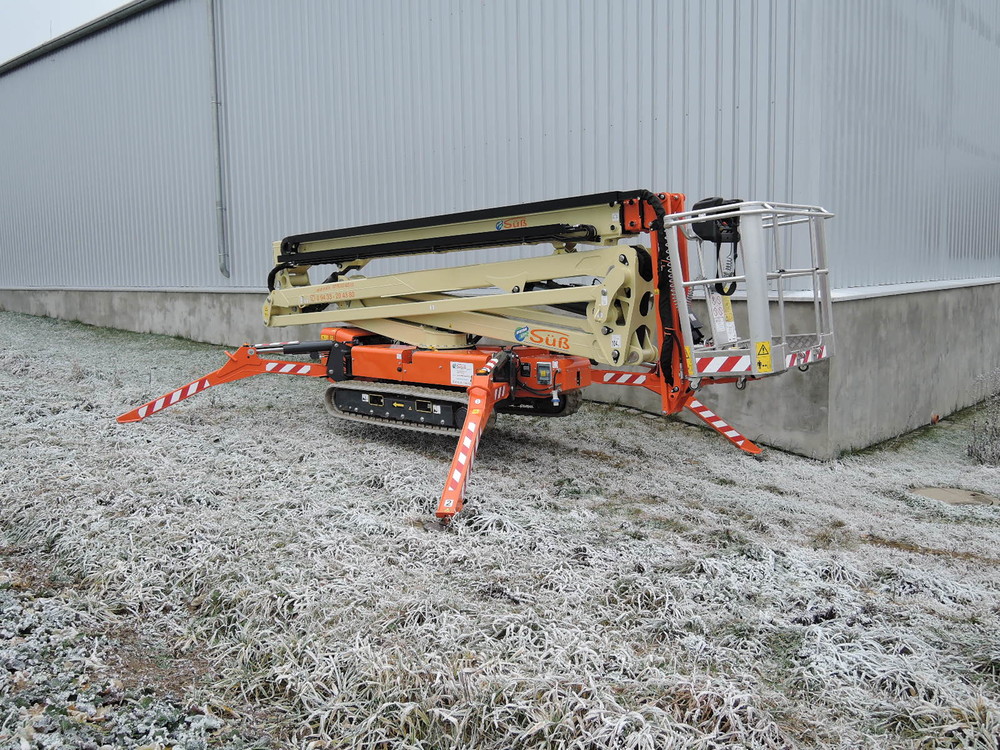

Crawler boom lift - GTR257-ED10

add to my request

Technical datas

Manufacturer name:JLG X26JP (Hinowa Lightlift 26.14)

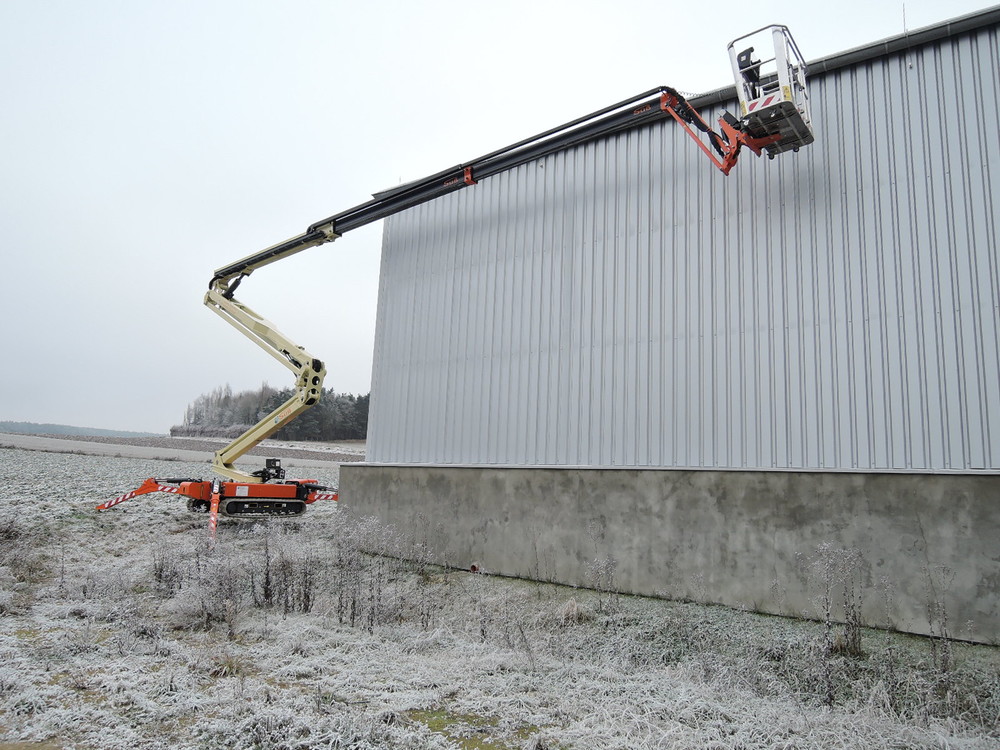

Max. working height:25,70 m
Max. platform height:23,70 m

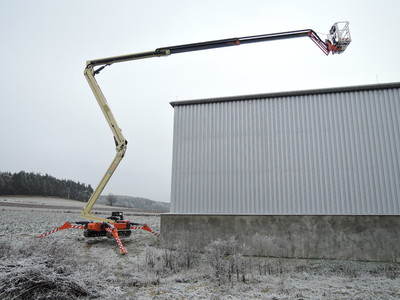

Max. horizontal reach:13,70 m*
Max. Lift capacity:230 kg
Platform dimensions:1,30 x 0,70 m
Transport dimensions:6,02 x 1,01 m**
Machine dimensions:6,40 x 1,50 m
Transportation height:1,99 m
Turntable overhang:1,40 m***
Support dimension:4,45 / 4,40 m****
Weight:4365 kg
Ground pressure load support max.:3124 daN
Power:hybrid
Gradeability:28 %

Features

Usage area:indoor use / outdoor use
All-terrain mobility:yes
Non marking tires:yes
Drive type variable:230 volt mains power or with diesel engine

Special features

+ Quick release system for work basket assembly
+ White rubber tracks to protect the substrate
+ Joint telescope technology
+ Automatic support system
+ Telescopic chassis
+ Low ground pressure

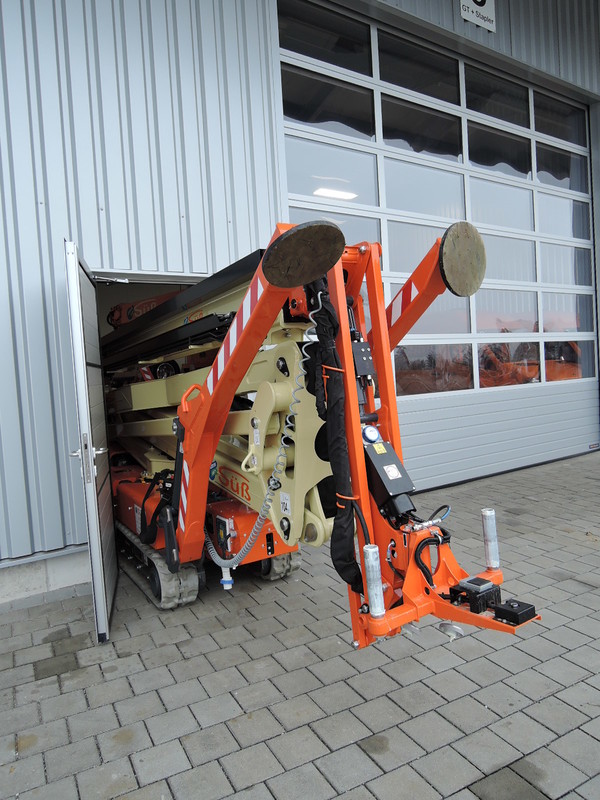

+ Can be driven through door BxL 1.00 x 2.00 m
+ Up and over clearance ca. 10,00 m
+ Ground inclination supportable ca. 16° / 28 %
+ Basket also in 0,80 x 0,80 m available

*    See diagram
**  Length without basket and crawler chassis retracted
***Supporting dimensions: (plate centre with load plate + 40 cm)
one side narrow supported: LxB 5,96 m x 3,60 m
on both sides supported: LxB 5,96 m x 2,76 m
