Telescopic boom lift - TB160-D23

add to my request

Technical datas

Manufacturer name:	Aichi SP14CJ

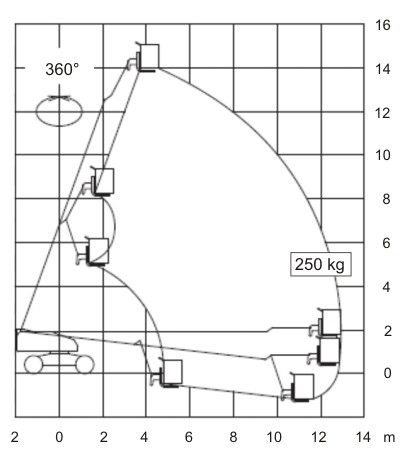

Max. working height:	15,90 m
Max. platform height:	13,90 m
Max. horizontal reach:	12,70 m
Max. Lift capacity:	250 kg
Platform dimensions:	1,83 x 0,76 m
Transport dimensions:	7,76 x 2,30 m
Transportation height:	2 m
Turntable overhang:	0,88 m
Weight:	8200 kg
ground preasure tyres:	5260 daN
Power:	diesel

Features

Usage area:	indoor use / outdoor use
All-terrain mobility:	yes

Special features

+ Extreme lateral reach
+ Moveable in full height
+ All-wheel drive with active swing axle
+ Transport length 5,80 m with retracted basket arm
