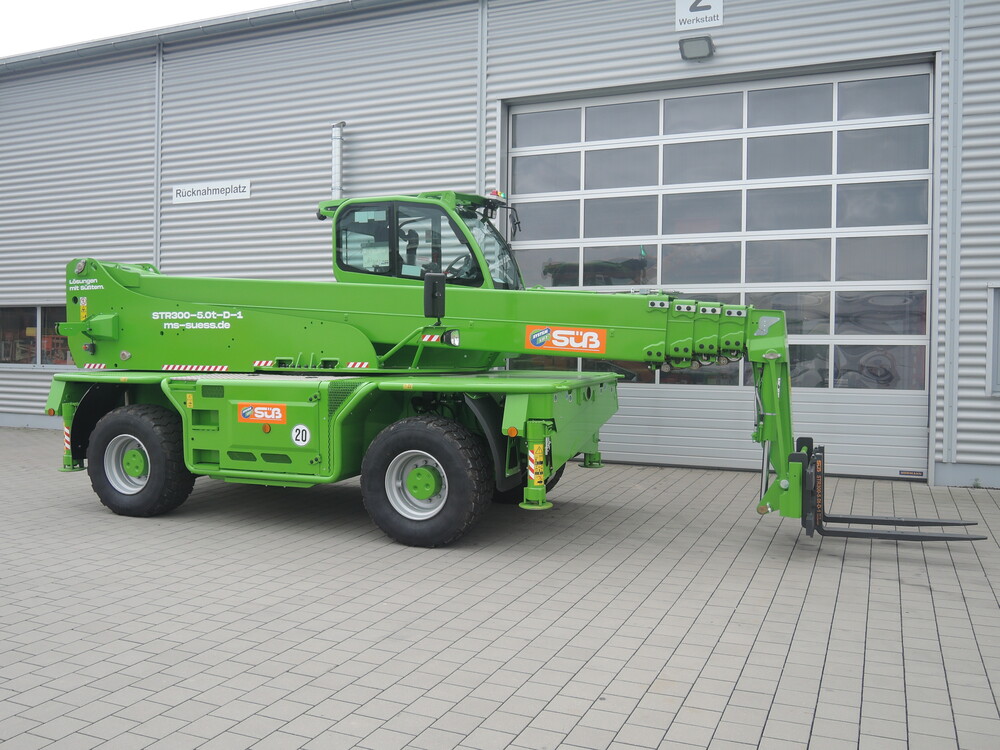

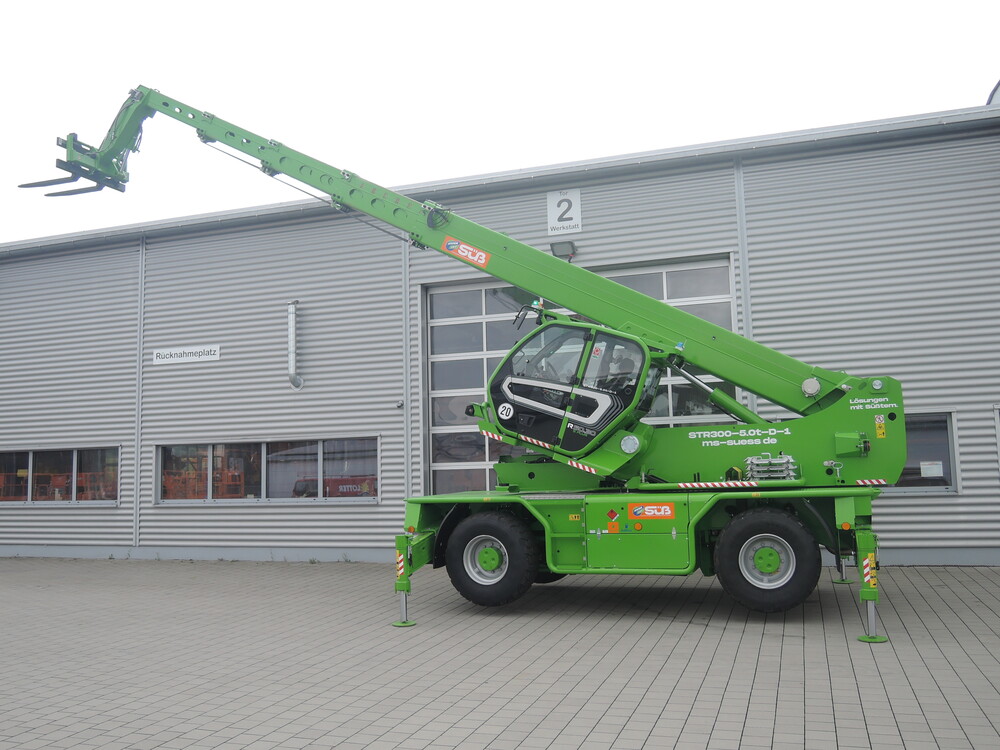

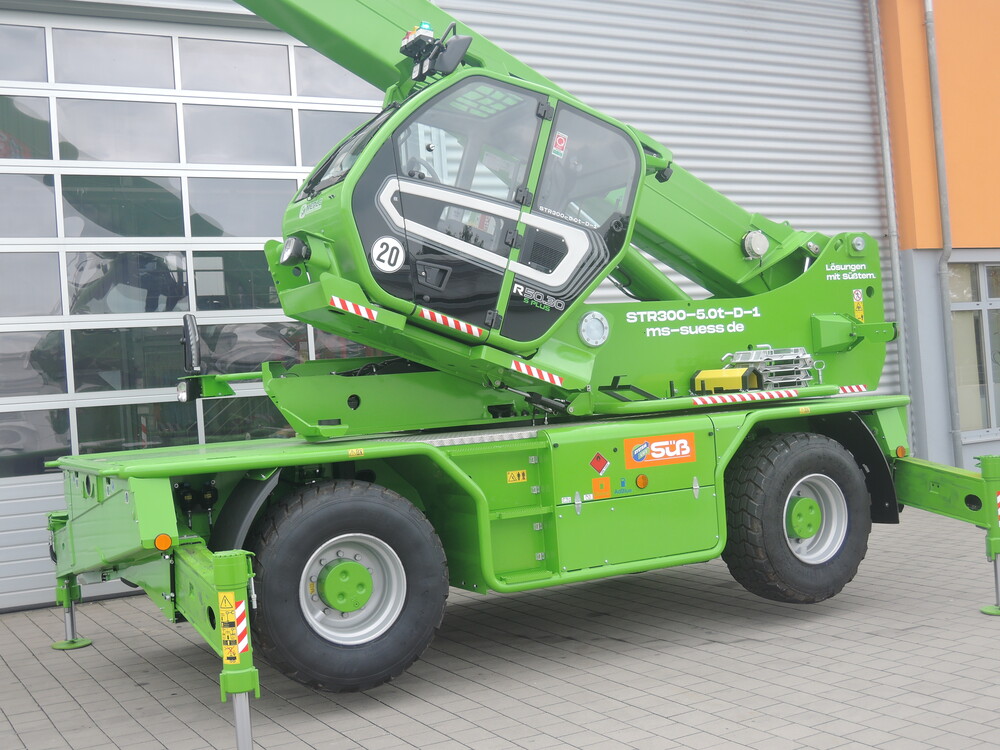

Telehandler rotable - STR300-5.0t-D

add to my request

Technical datas

Type:	Merlo ROTO 50.30 S Plus
Lifting height max.:	29,20 m
Capacity max.:	4950 kg*
Horizontal reach:	25,40 m
Load capacity at max. lifting height:	2000 kg
Load capacity at max. range/reach:	400 kg
Transport dimensions:	7,78 x 2,54 m**
Power:	diesel
Machine height:	3,16 m
Leveling:	+/- 4°
Weight:	20500 kg
Dimensions for support max.:	7,78 x 5,26 m
Dimensions for support min.:	7,78 x 2,54 m
Drive speed max.:	20 km/h

Features

Level adjustment:	yes
Support frames:	yes
All-terrain mobility:	yes
Non marking tires:	no

Special features

Attachements (optional):
+ Short forks: 1,20 m
+ Fork extensions: 2,00 m
+ Load hook: max 4,95 t
+ Winch max. 4,5 t
+ Work basket (LxB 4,46 x 0,85 m, 800 kg load capacity)

Special equipment:
- Work lights
- Remote control (optional)

Also with operating personnel on request

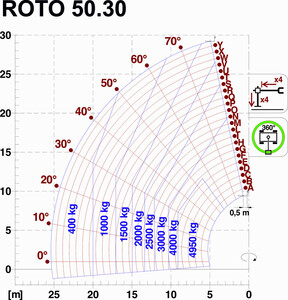

* see diagramm
** Transport length without attachment

Attachment parts

Forks 1,20 m

add to my request

Remote control

add to my request

Fork extensions

add to my request

Jib with winch

add to my request

Hook

add to my request

Shovel

add to my request

Winch

add to my request

Platform 800 kg

Capacity max.:	800 kg
Length:	4,30 m
Width:	0,85 m
Permissible number of people:	3
Weigth:	560 kg

add to my request

Special lift

Capacity max.:	200 kg
Length:	1,26 m
Width:	0,72 m
Permissible number of people:	2
For areas that are difficult to access:	Underground work of up to -9.6 m and reaching behind obstacles by up to 7.9 m are possible

add to my request

request

specifications

purchase request

specifications

all disclosures without grant
