Special lift - SP-PL143

add to my request

Manufacturer name:	Genie AWP-40S
Max. working height:	14,30 m
Max. platform height:	12,30 m
Max. Lift capacity:	136 kg
Platform dimensions:	0,69 x 0,66 m
Transport dimensions:	2,79 x 0,98 m
loading height tilted:	1,98 m
Support dimension:	2,06 / 2,26 m
Weight:	472 kg
Ground pressure load support max.:	181 daN
Power:	230 V AC

Non marking tires:

yes

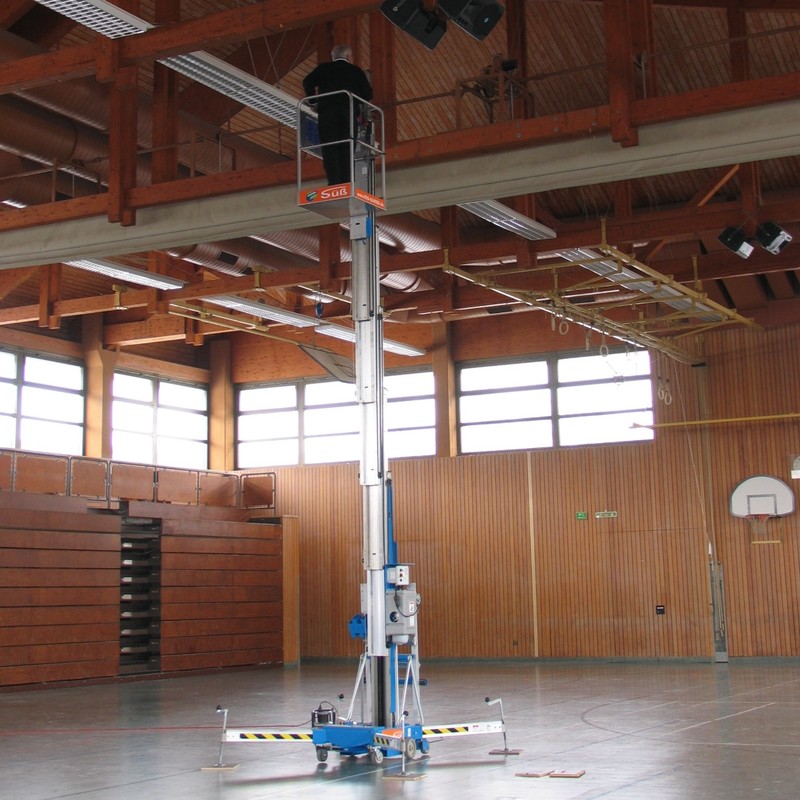

Passenger lift is specially designed for hall floors and floors with little pressure.

For your special missions:
- Schools
- shopping center
- Hotels
- sports halls
- Museums
- Theatre
- hospitals and much more.

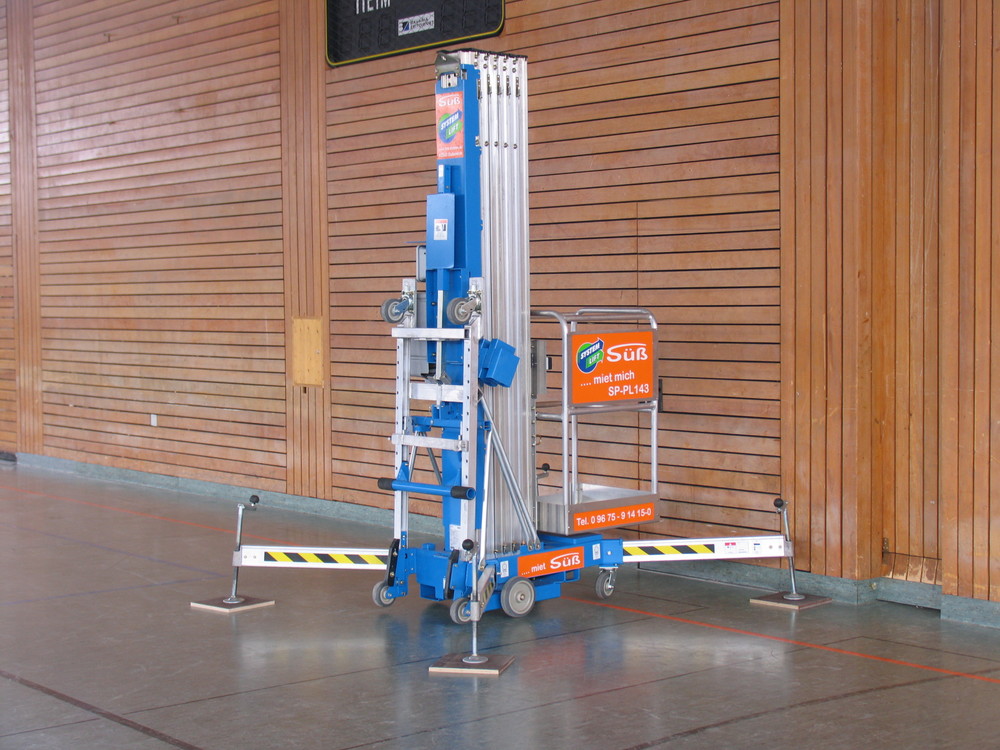

The lift can be folded to a height of 1.98 m to enter in standard doors.

Outdoor use only with larger supports
