Crawler boom lift - GTR130-EB8
Technical datas
| Manufacturer name: | Bluelift C13 |
| Max. working height: | 13 m |
| Max. platform height: | 11 m |
| Max. horizontal reach: | 7,50 m* |
| Max. Lift capacity: | 230 kg |
| Platform dimensions: | 1,30 x 0,70 m |
| Machine dimensions: | 4,59 x 0,80 m** |
| Transportation height: | 1,99 m |
| Turntable overhang: | 0,40 m |
| Support dimension: | 3,15 / 3,15 m*** |
| Weight: | 1500 kg |
| Ground pressure load support max.: | 1050 daN |
| Power: | hybrid |
| Gradeability: | 28 % |
Features
| Levelling: | yes |
| Usage area: | indoor use / outdoor use |
| All-terrain mobility: | yes |
| Non marking tires: | yes |
| Drive type variable: | 230 volt mains power or with a petrol engine |
Special features
+ Quick release system for work basket assembly
+ White rubber tracks to protect the substrate
+ Home function
+ Automatic support system
+ Low ground pressure

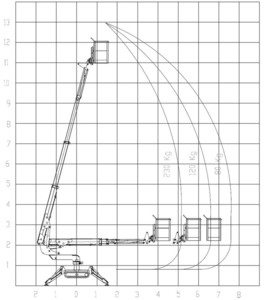

* See diagram
** Length without basket: 3.89 m
***Supporting dimensions: (plate centre with load plate + 40 cm = 3,55 m)
specifications
specifications
all disclosures without grant
