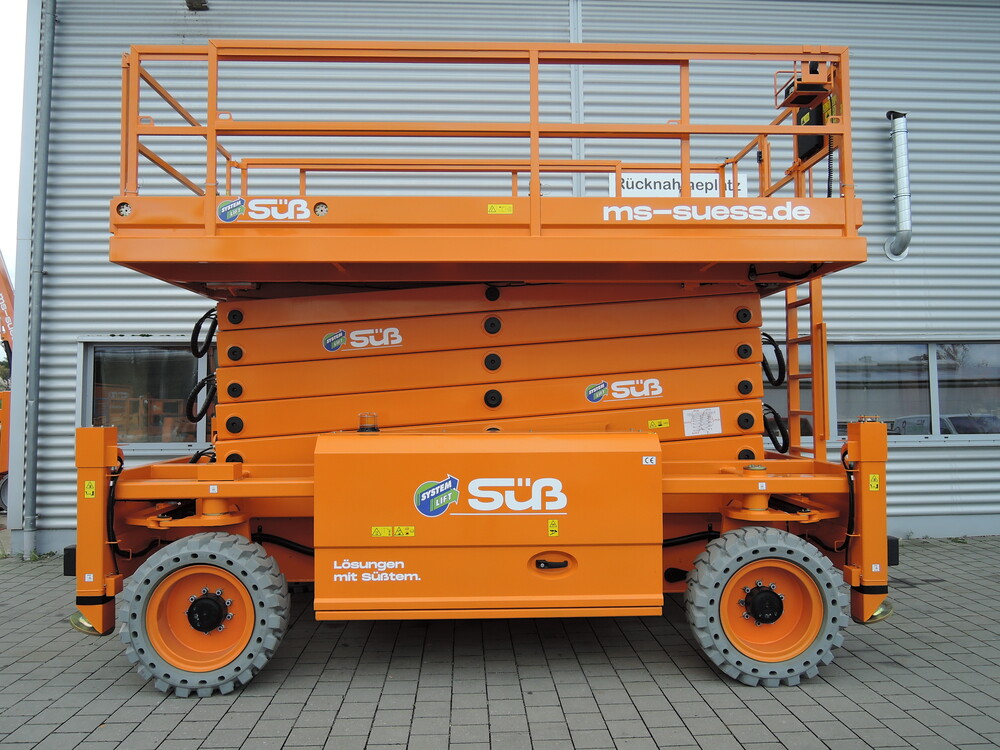

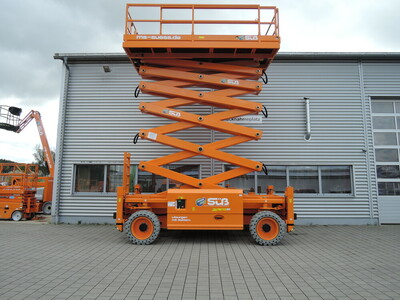

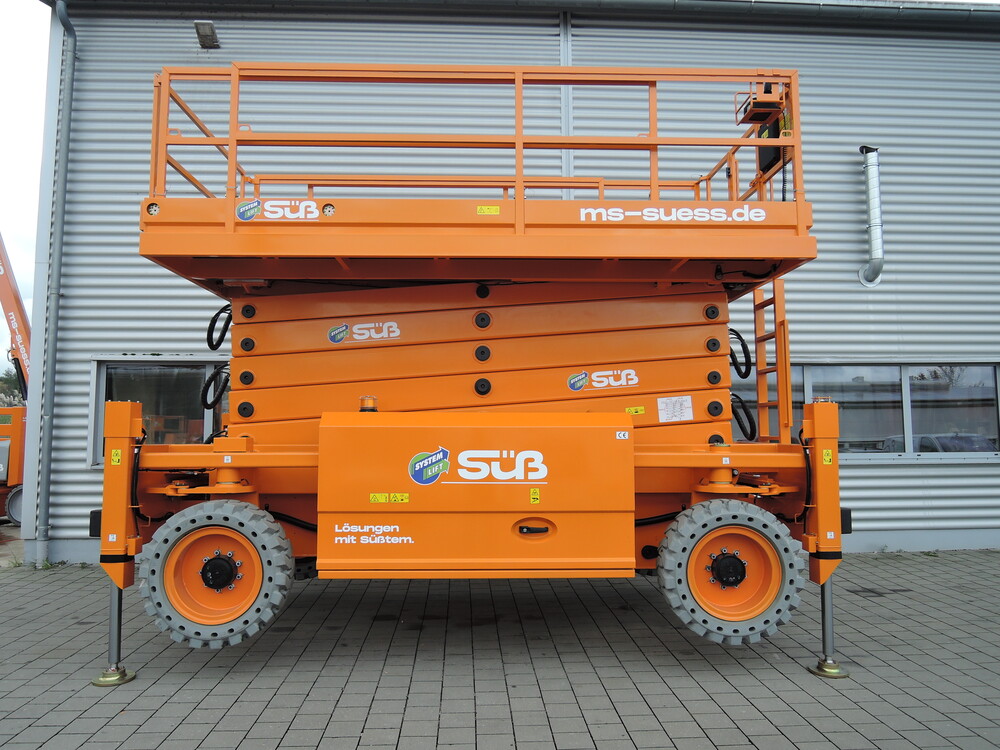

Scissor lift - S220-E25
Technical datas
| Manufacturer name: | Magni ES2223RTP |
| Max. working height: | 22 m |
| Max. platform height: | 20 m |
| Max. Lift capacity: | 750 kg |
| platform size: | 4,95 x 2,25 m |
| platform extended: | 7,65 x 2,25 m |
| Transport dimensions: | 4,95 x 2,46 m |
| Transportation height: | 3,86 m |
| Height with railing folded down: | 3 m |
| Weight: | 13400 kg |
| ground preasure tyres: | 4030 daN |
| Ground pressure load support max.: | 4030 daN |
| Power: | battery with charger |
| Gradeability: | 30 % |
| drive speed stowed: | 5 km/h |
| drive speed raised: | 0,40 km/h |
Features
| Levelling: | yes |
| Usage area: | indoor use / outdoor use |
| All-terrain mobility: | yes |
| Non marking tires: | yes |
Special features
+ automatic support levelling
+ mega platfor
+ platform extension overhang > 2,70 m
+ very high load capacity
+ all-wheel drive with lock
+ emission-free electric drive
