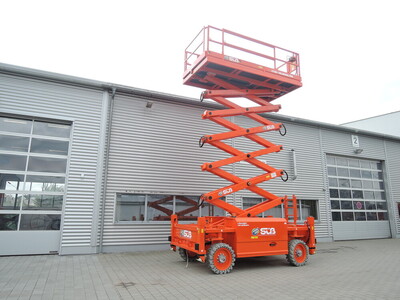

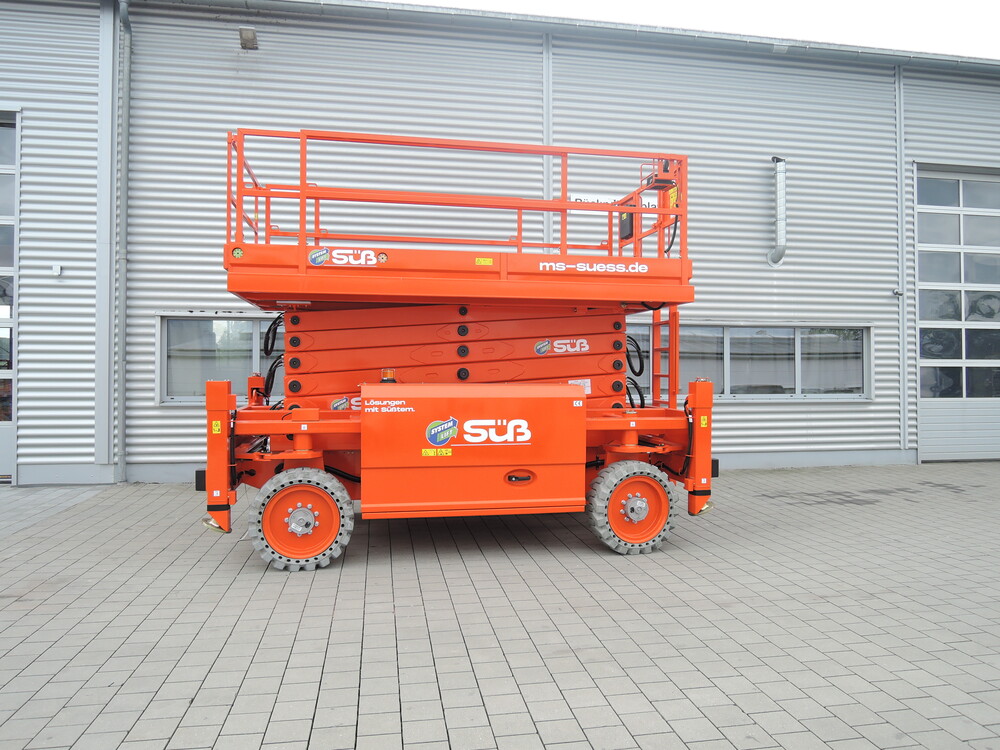

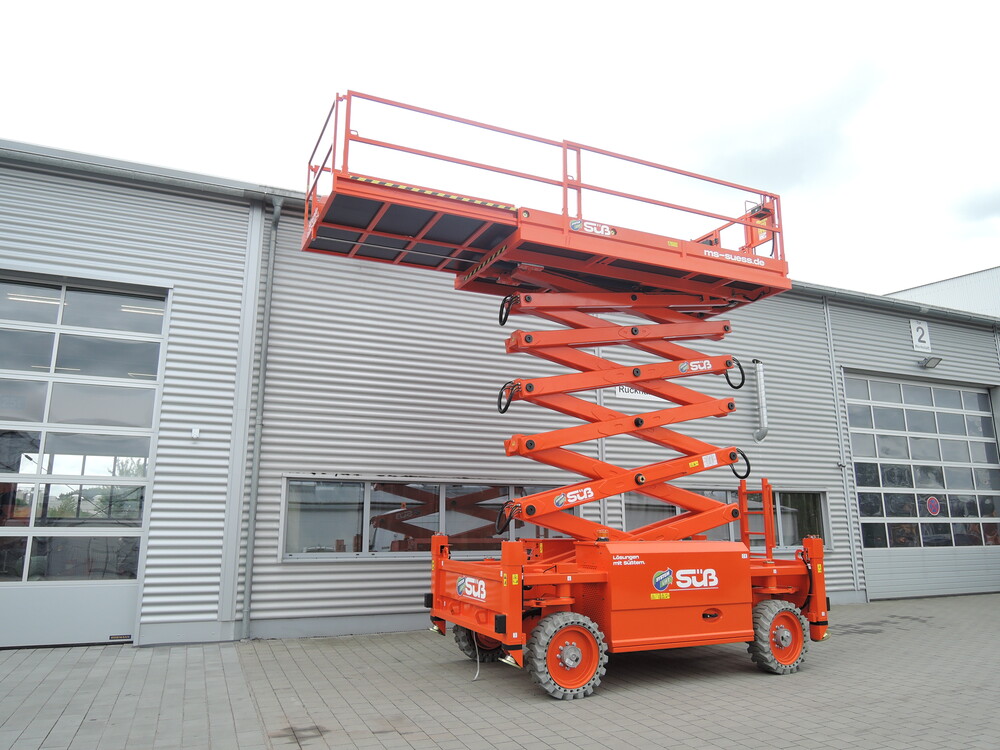

Scissor lift - S190-E23
Technical datas
| Manufacturer name: | Magni ES1923RT |
| Max. working height: | 19 m |
| Max. platform height: | 17 m |
| Max. Lift capacity: | 620 kg |
| platform size: | 4,06 x 2,00 m |
| platform extended: | 6,06 x 2,00 m |
| Transport dimensions: | 4,46 x 2,29 m |
| Transportation height: | 3,60 m |
| Height with railing folded down: | 2,75 m |
| Weight: | 10870 kg |
| ground preasure tyres: | 3470 daN |
| Ground pressure load support max.: | 3470 daN |
| Power: | battery with charger |
| Gradeability: | 40 % |
| drive speed stowed: | 4,50 km/h |
| drive speed raised: | 0,60 km/h |
Features
| Levelling: | yes |
| Usage area: | indoor use / outdoor use |
| All-terrain mobility: | yes |
| Non marking tires: | yes |
Special features
+ automatic support levelling
+ mega platform
+ very high load capacity
+ all-wheel drive with lock
+ emission-free electric drive
specifications
specifications
all disclosures without grant
