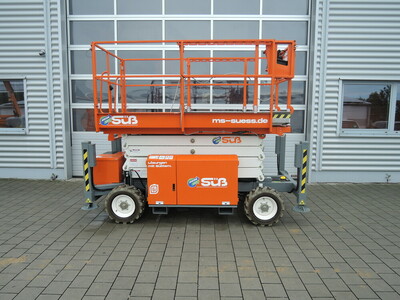

Scissor Lift - S102-E15
Technical datas
| Manufacturer name: | Snorkel S2755RT |
| Max. working height: | 10,10 m |
| Max. platform height: | 8,10 m |
| Max. Lift capacity: | 300 kg |
| platform size: | 2,73 x 1,40 m |
| platform extended: | 3,93 x 1,40 m |
| Transport dimensions: | 3,30 x 1,45 m |
| Transportation height: | 2,50 m |
| Height with railing folded down: | 2,13 m |
| Weight: | 2750 kg |
| ground preasure tyres: | 1565 daN |
| Ground pressure load support max.: | 1565 daN |
| Power: | battery with charger |
| Gradeability: | 35 % |
Features
| Levelling: | yes |
| Usage area: | indoor use (2 persons) / outdoor use (1 person) |
| All-terrain mobility: | yes |
| Non marking tires: | yes |
Special features
+ Narrow construction
+ Automatic support levelling
+ Up to 4°/2° inclination possible with supports
+ Moveable up to 7,2 m working height
+ Lithium-ion battery system
