ST25.0t-25E_Kran

add to my request

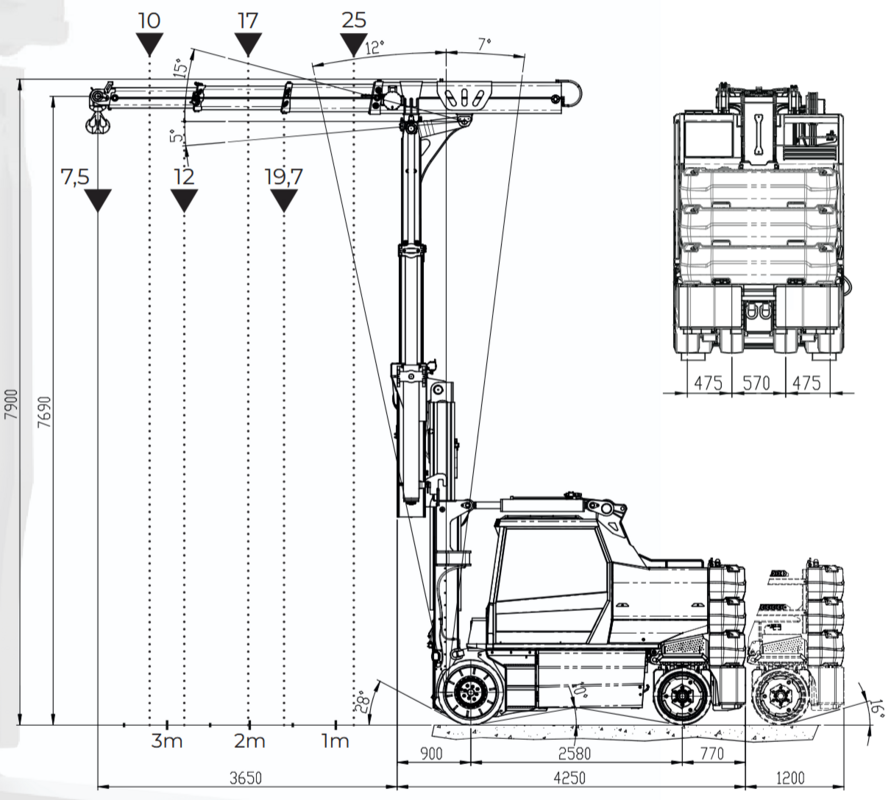

Technical datas

Type:JMG MC250.09FL
Lifting height max.:7,30 m*
Capacity max.:25000 kg
Horizontal reach:3,65 m*
Load capacity at max. lifting height:25000 kg*
Load capacity at max. range/reach:7500 kg*
Transport dimensions:5,15 x 1,80 m**
Power:electro
Machine height:2,85 m
Weight:27500 kg***
Ground pressure max. (Front axle): daN

Features

Support frames:no
Non marking tires:yes

Special features


- Remote control (also driving possible, load display)
- work lights
- 2x cameras
- Removable counterweights 6080 kg


Attachments (optional):

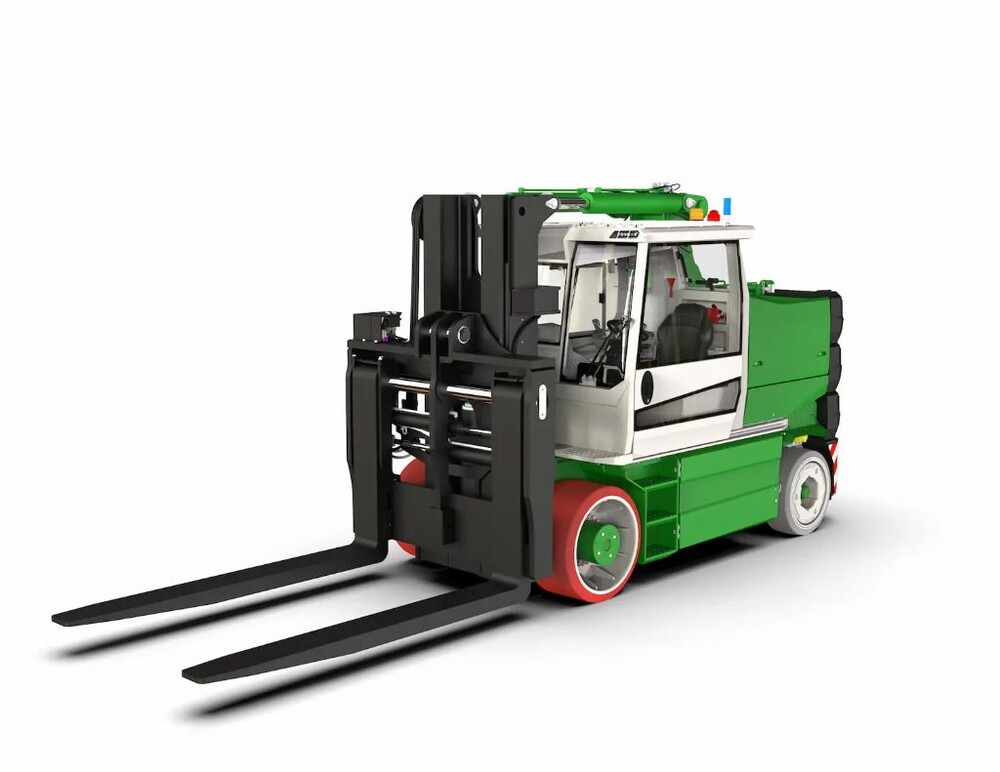

- Forks max. 25000 kg / 900 mm LSP





* Depending on the attachments
** Transport length without attachment
*** Machine weight with full ballast, without attachment
