PC40.0t-E

add to my request

Technical datas

Type:	JMG MC400S
Lifting height max.:	16,20 m*
Capacity max.:	40000 kg
Horizontal reach:	11,40 m*
Load capacity at max. lifting height:	8300 kg*
Load capacity at max. range/reach:	5100 kg*
Transport dimensions:	6,24 x 2,25 m**
Power:	electro
Machine height:	2,32 m
Weight:	32800 kg***
Ground pressure max. (per outrigger)::	27450 daN
Ground pressure max. (Front axle)::	65500 daN

Features

Support frames:	yes
Non marking tires:	yes

Special features

- Remote control (with load display)
- work lights
- Removable counterweights 10700 kg

Attachments (optional):
- load hook max. 40000 kg
- Mounting tip max. 30000 kg
- hydraulic mounting tip max. 10000 kg

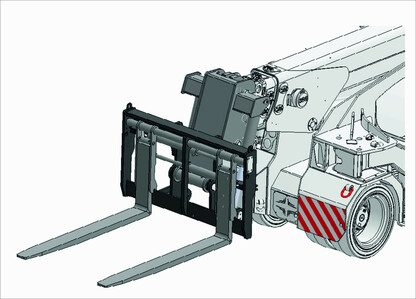

- Forks max. 16000 kg / 800 mm LSP

* Depending on the attachments
** Transport length without attachment
*** Machine weight with full ballast, without attachment
