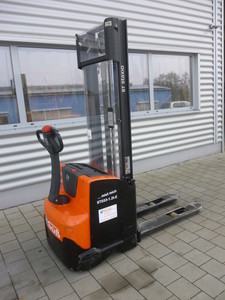

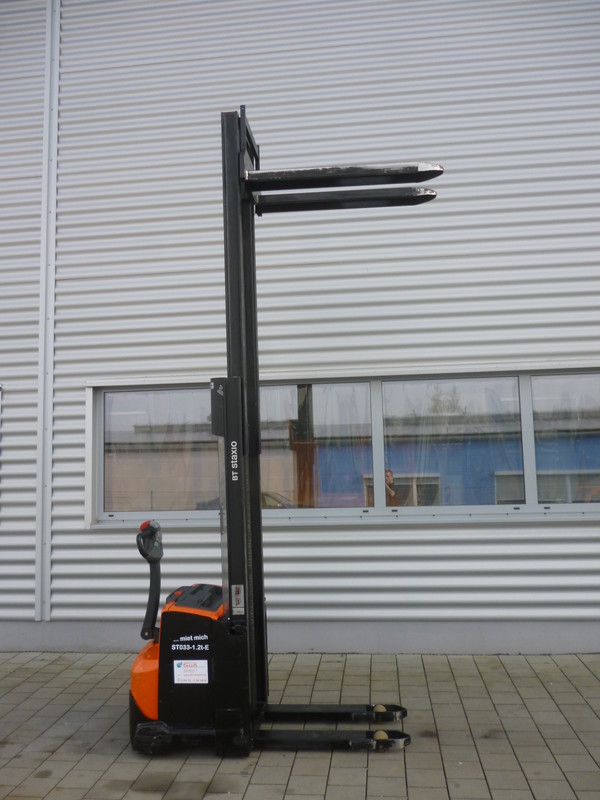

Electric Pallet Stacker - HH01.2t-33EN

add to my request

Technical datas

Type:BT SWE120L
Lifting height max.:3,30 m
Capacity max.:1200 kg
Load capacity at max. lifting height:825 kg
Transport dimensions:1,90 x 0,77 m
Power:electro
Machine height:1,72 m
Weight:945 kg
Load capacity at 800 mm Load center max.:1200 kg
Load capacity at 600 mm Load center max.:900 kg
Free lift max.:1,18 m
Fork (LxW):1,16 x 0,18 m

Features

Non marking tires:yes
Initial lift:Yes

Special features
