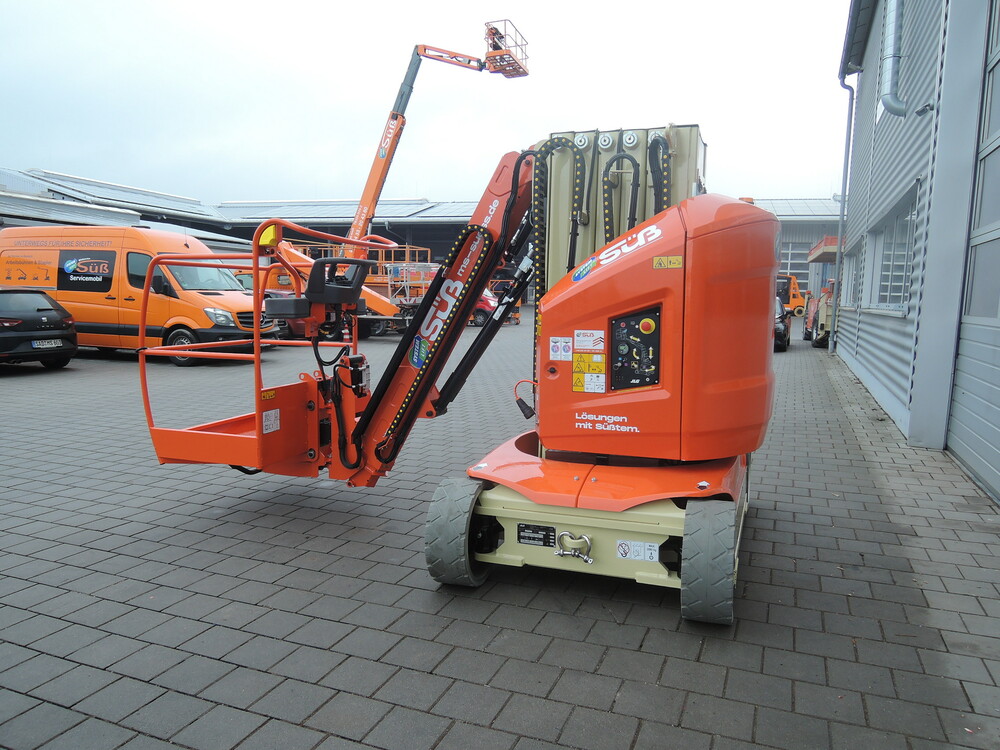

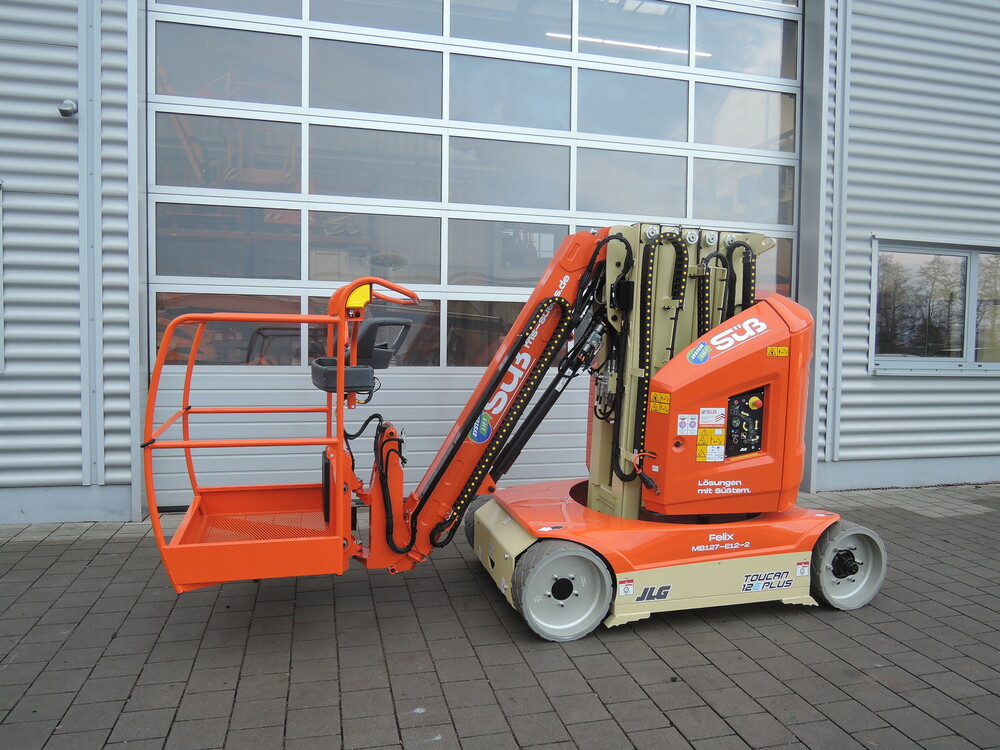

Articulated telescopic work platform - MB127-E12
Technical datas
| Manufacturer name: | JLG Toucan E12 Plus |
| Max. working height: | 12,70 m |
| Max. platform height: | 10,70 m |
| Max. horizontal reach: | 6,10 m |
| Max. Lift capacity: | 200 kg |
| Platform rotation: | 2 x 60° |
| Turntable rotation: | 345° |
| Platform dimensions: | 0,90 x 0,70 m |
| Transport dimensions: | 3,70 x 1,20 m |
| Transportation height: | 2,02 m |
| Turntable overhang: | 0,15 m |
| Weight: | 4920 kg |
| ground preasure tyres: | 3900 daN |
| Power: | battery with charger |
| connecting power: | 230V / 6A |
| Gradeability: | 25 % |
| Controls: | full proportional |
Features
Special features
+ very maneuverable and narrow (only 1.20 m wide)
+ can be moved to full height
+ only small lateral overhang (15 cm)
+ very maneuverable and narrow
+ large lateral reach
+ very high articulation point height
+ push mast technology
+ self-propelled without outriggers
specifications
specifications
all disclosures without grant
