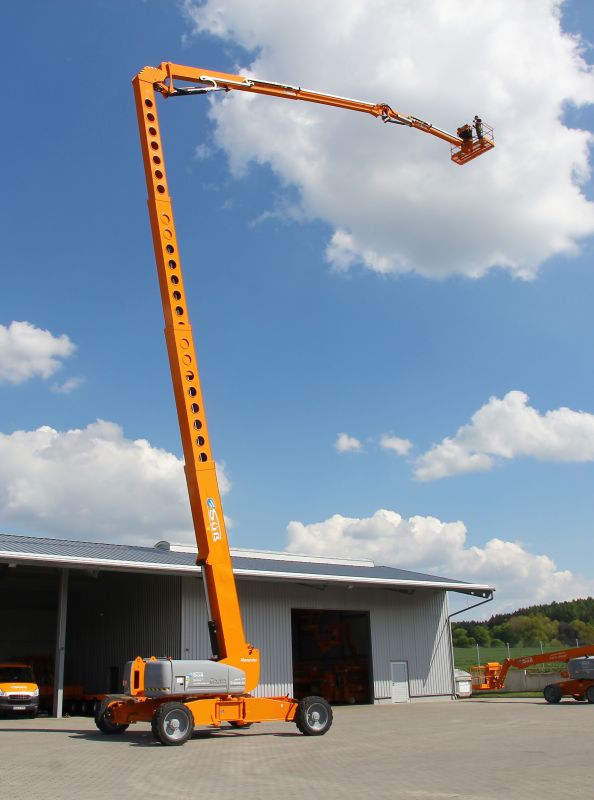

Articulating boom lift - GT431-D25

add to my request

Technical datas

Manufacturer name:	Genie ZX -135/70

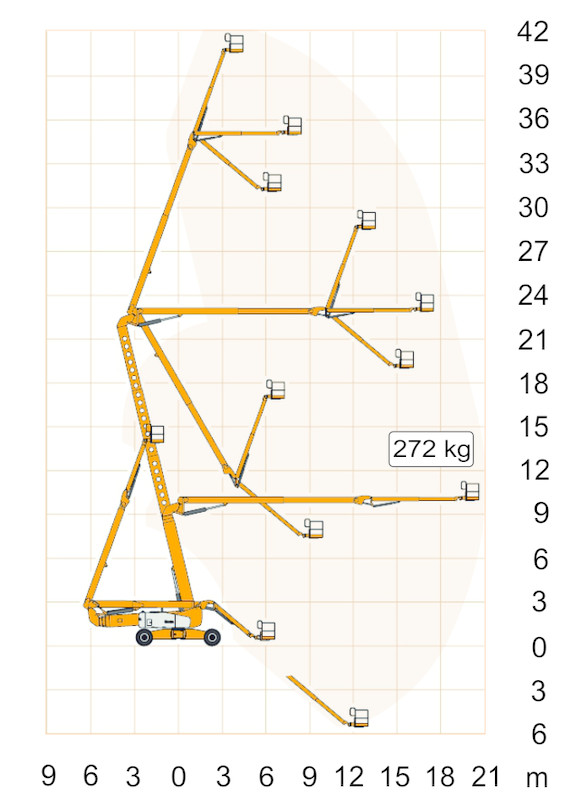

Max. working height:	43,10 m
Max. platform height:	41,10 m
Max. horizontal reach:	21,20 m
Max. Lift capacity:	272 kg
Platform dimensions:	2,44 x 0,91 m
Transport dimensions:	12,93 x 2,49 m
Transportation height:	3,09 m
Turntable overhang:	0,80 m
Weight:	20500 kg
ground preasure tyres:	11500 daN
Power:	diesel

Features

Usage area:	outdoor use
All-terrain mobility:	yes

Special features

+ Articulated telescope technology
+ Large lateral range
+ Low side overhang (ca. 0,80 m)
+ Very high kink point height
+ Telescopic bastket arm (3,70 - 6,10 m)
+ Low ground preasure load ca
