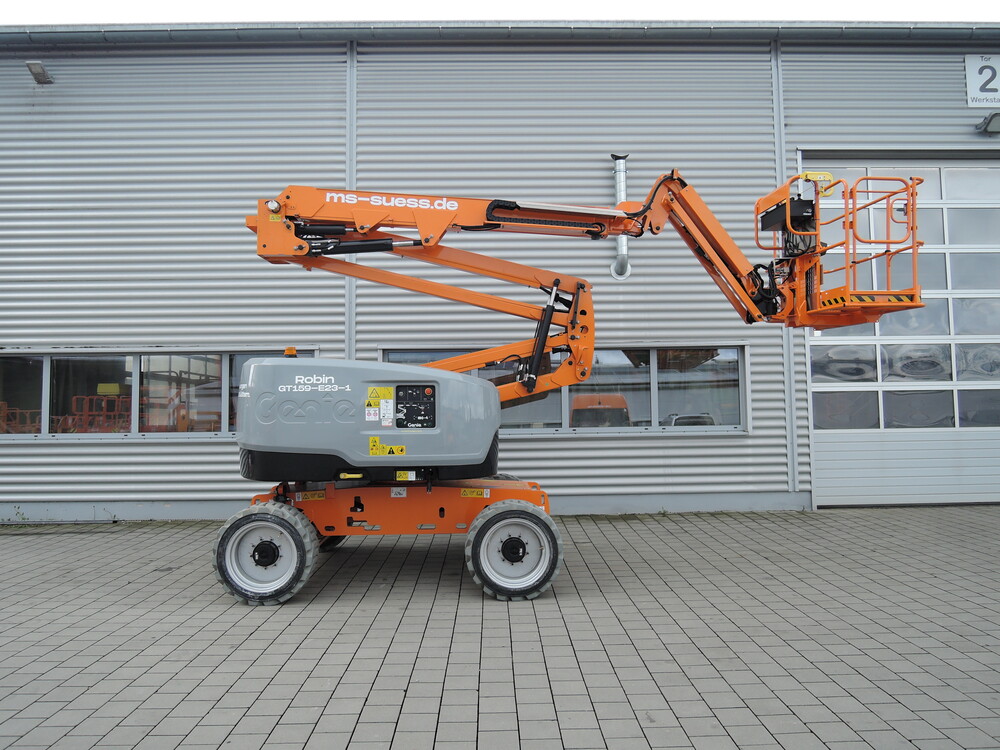

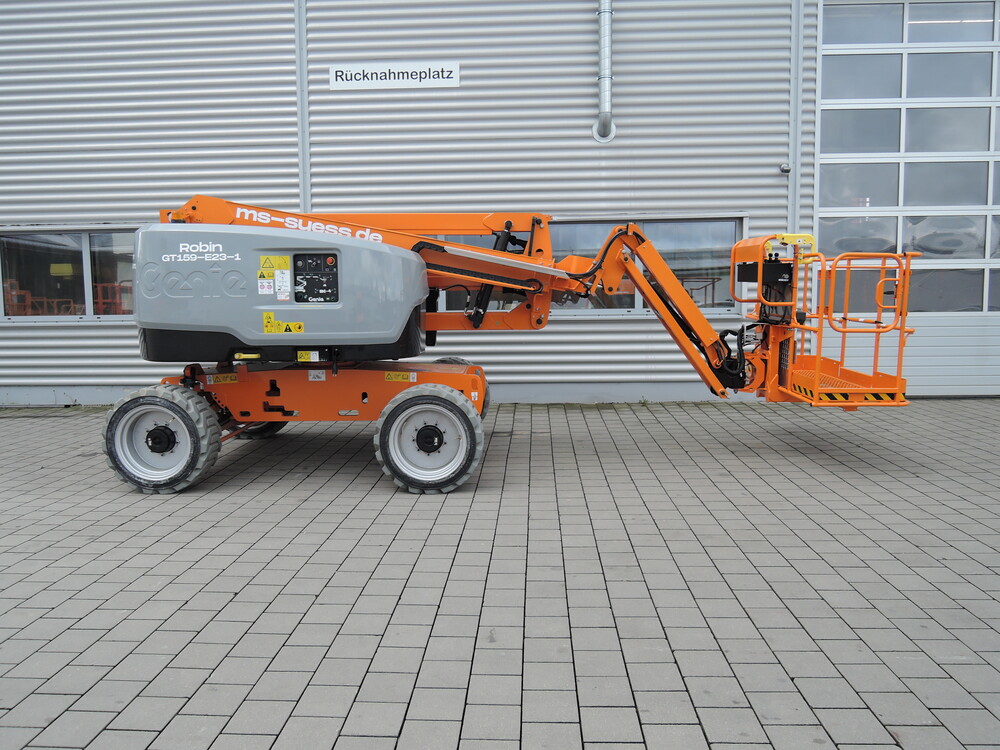

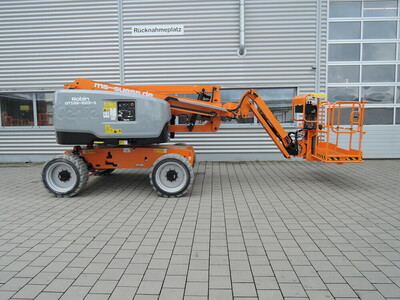

Articulating boom lift - GT159-E23
Technical datas
| Manufacturer name: | Genie Z-45FE |

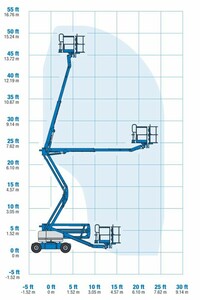

| Max. working height: | 15,92 m |
| Max. platform height: | 13,92 m |
| Max. horizontal reach: | 6,95 m |
| Max. Lift capacity: | 300 kg |
| Platform dimensions: | 1,83 x 0,76 m* |
| Transport dimensions: | 6,66 x 2,29 m |
| Transportation height: | 2,29 m |
| Weight: | 6386 kg |
| ground preasure tyres: | 4226 daN |
| Power: | diesel |
| Gradeability: | 45 % |
Features
| Usage area: | outdoor use |
| All-terrain mobility: | yes |
| Non marking tires: | no |
Special features
+ Large lateral range
+ No side overhang when swiveling
+ High kink point height
+ All-wheel drive
+ Wide foam-filled tires for little ground pressure
+ Swing axle
+ High load capacity
* an oversized basket with LxW 4.00 x 0.91 m is also available.
